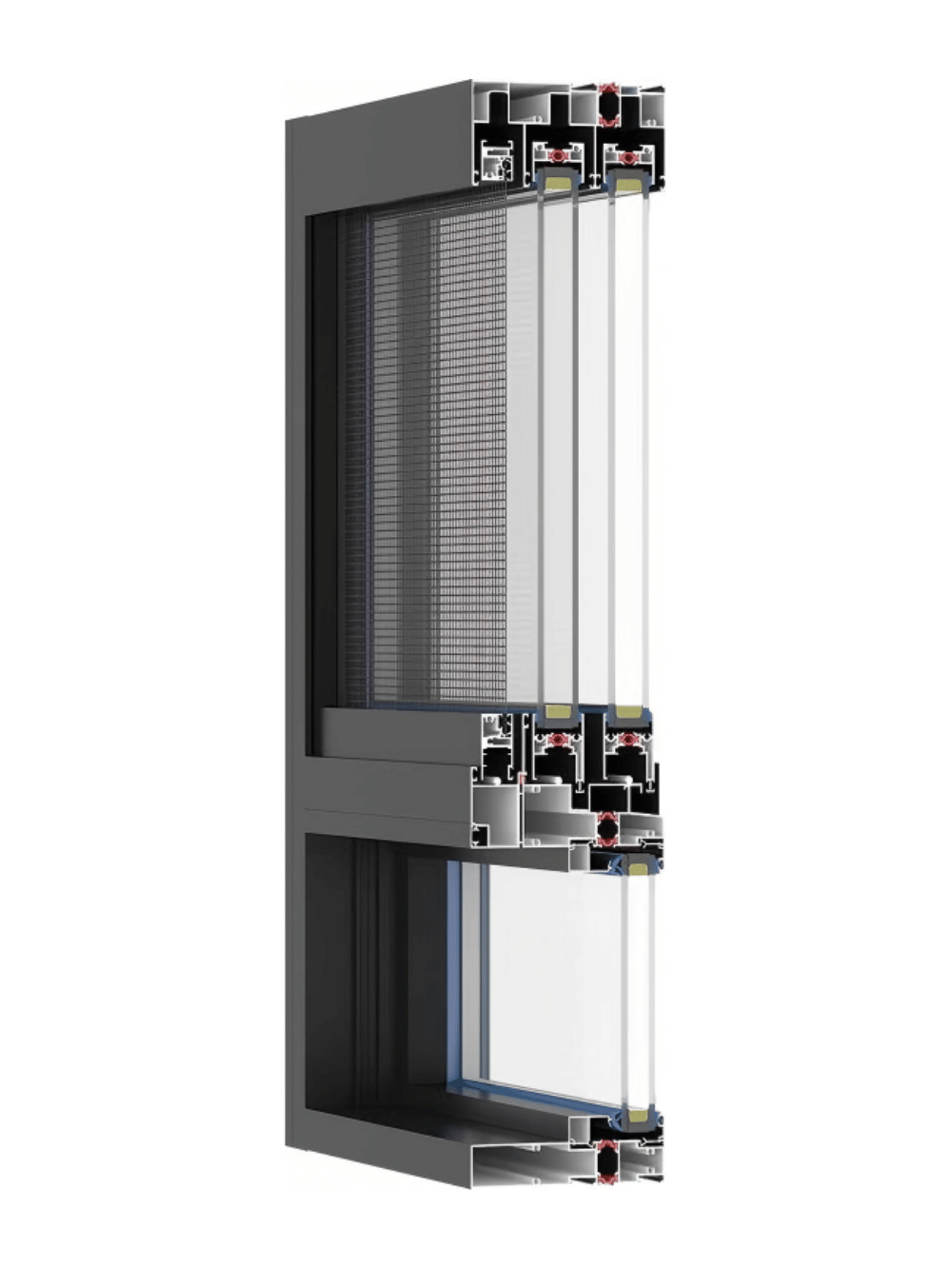

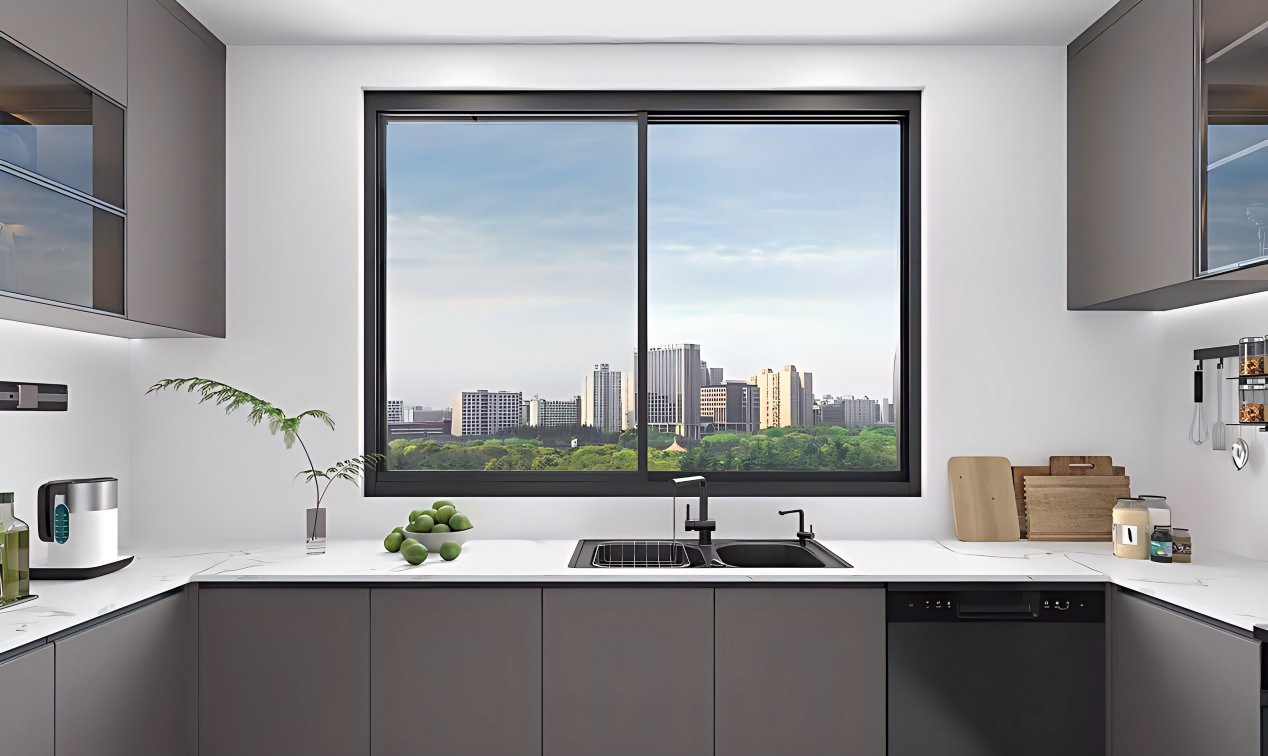

NH CLARA 142 BROKEN BRIDGE ULTRA-NARROW SLIDING
PERFORMANCE PARAMETERS
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.44 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: Double Track: 104 mm / Triple Track: 141.5 mm
- Glass: 5 mm + 20A + 5 mm
- Hardware System: Homey
