Casement Windows
A casement window is hinged at the side and swings inward or outward like a door. It does not slide left or right.
It offers excellent ventilation and a wide opening, making it the standard choice for modern residential and commercial building projects.
Showing all 8 results

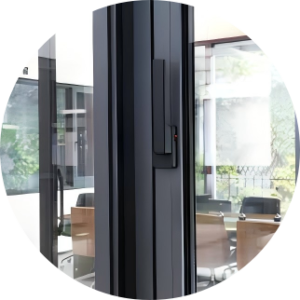

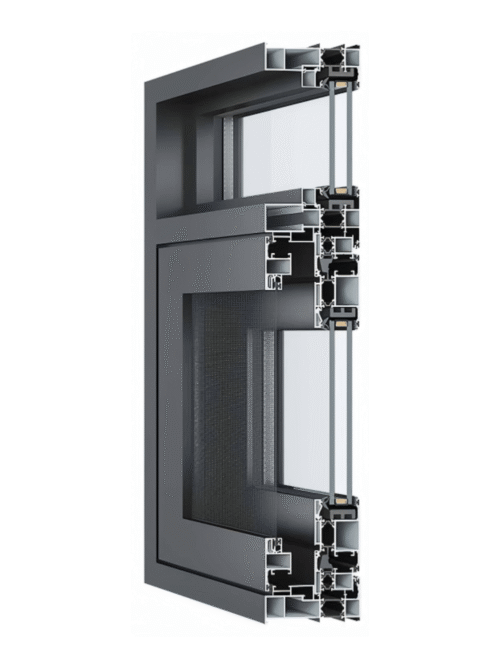

NH MIRA 109 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNAL WINDOW OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 2.0 mm
- Surface Treatment: Powder Coating
- System Width: 109 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Wehag Germany

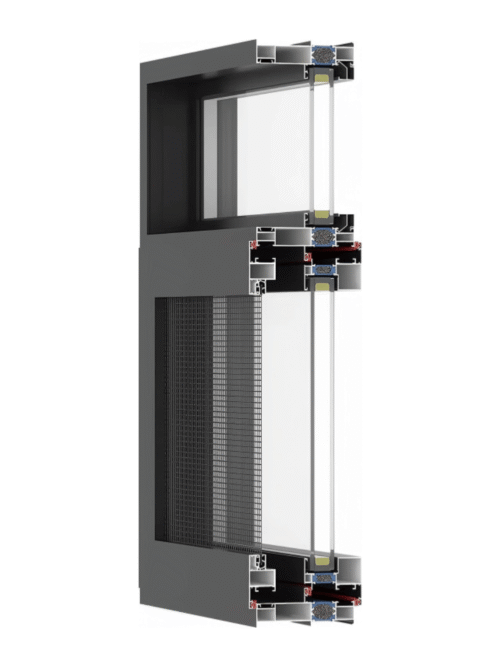

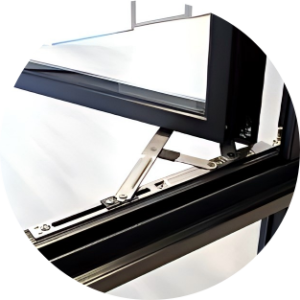

NH MIRA 110 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNA WINDOW OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 1.4 mm
- Surface Treatment: Powder Coating
- System Width: 110 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Hopo

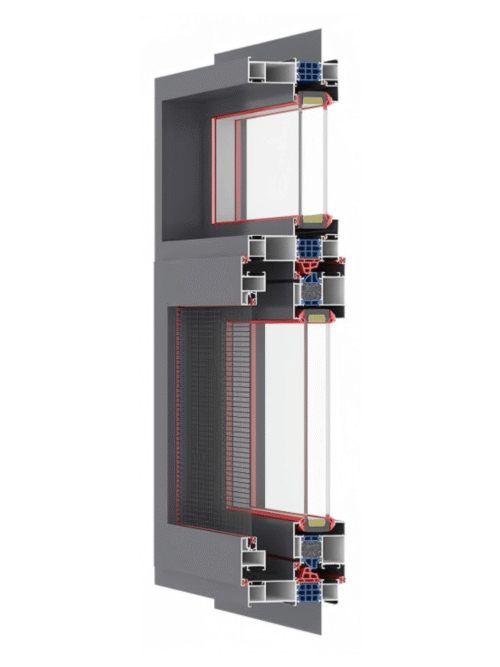

NH MIRA 113 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNAL WINDOW OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 2.0 mm
- Surface Treatment: Powder Coating
- System Width: 111.5 mm
- Glass Specification: 5mm + 27A + 5mm
- Hardware System: Wehag Germany

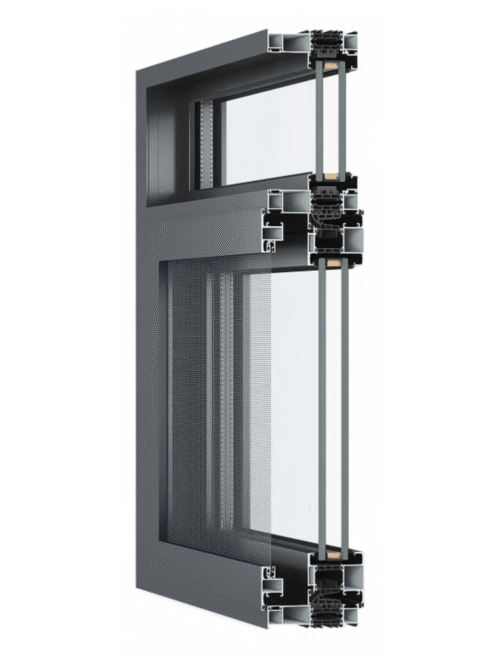

NH MIRA 127 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNAL WINDOW OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 2.0 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 125.5 mm
- Glass: 5 mm + 18A + 5 mm + 18A + 5 mm (Triple Glazing)
- Hardware System: Wehag (Germany)

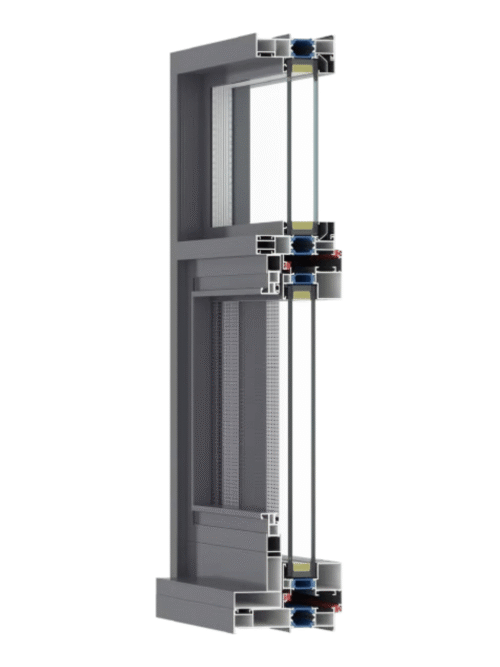

NH MIRA 86 THERMAL BREAK CASEMENT WINDOW WITH INTEGRATED SCREEN
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 1.6 mm
- Surface Treatment: Powder Coating
- System Width: 86 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Hope, Shenzhen

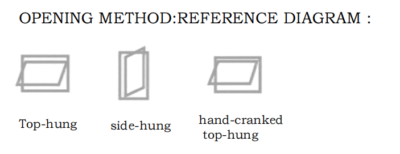

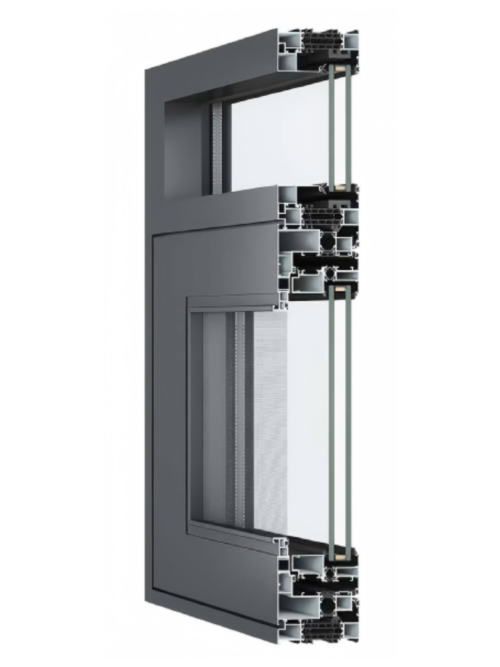

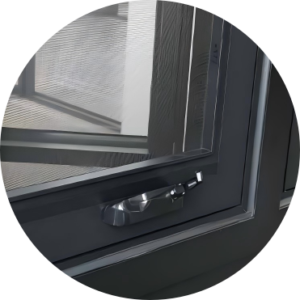

NH MIRA T8 BROKEN BRIDGE AMERICAN HAND CRANKED WINDOW
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment: Powder Coating
- Profile Width (Wall Occupancy): 107 mm
- Glass: 5 mm + 27A + 5 mm
- Hardware System: King Long, Wehag Gemany

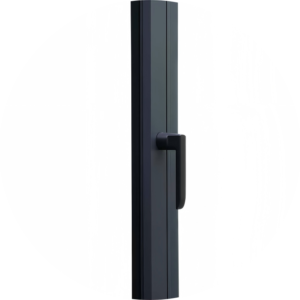

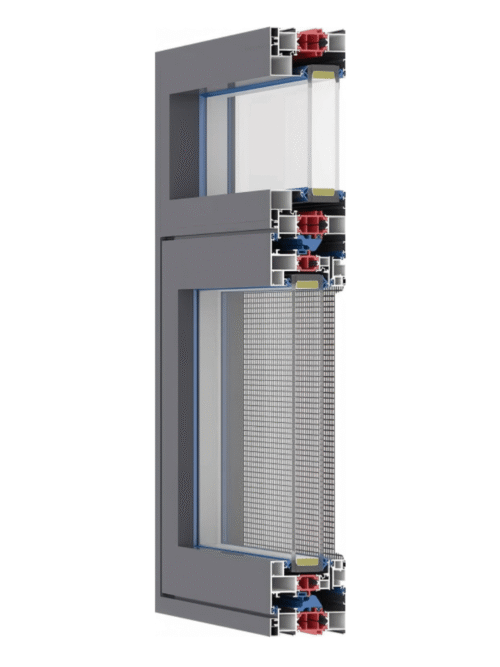

NH VERA 88 THERMAL BREAK CASEMENT WINDOW WITH INTEGRATED SCREEN
PERFORMANCE PARAMETERS
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.32 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 88 mm
- Glass: 5 mm + 27A + 5 mm
- Hardware System: Wehag (Germany)

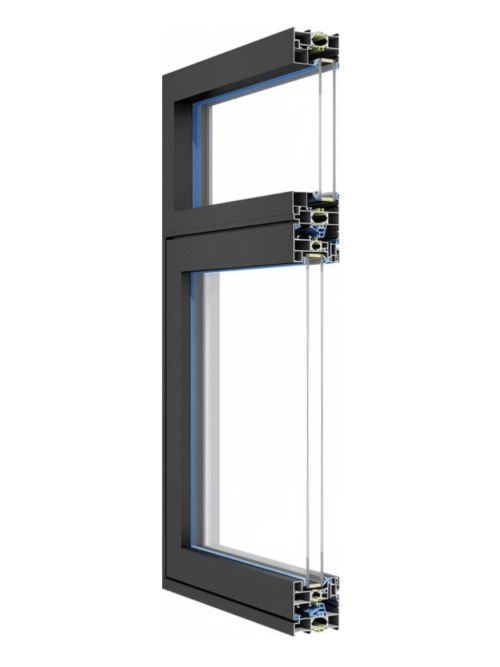

NH VERA E2 BROKEN BRIDGE WITH DOUBLE INTERNAL WINDOWS
PERFORMANCE PARAMETERS
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.32 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 81 mm
- Glass: 5 mm + 20A + 5 mm
- Hardware System: Hopo
