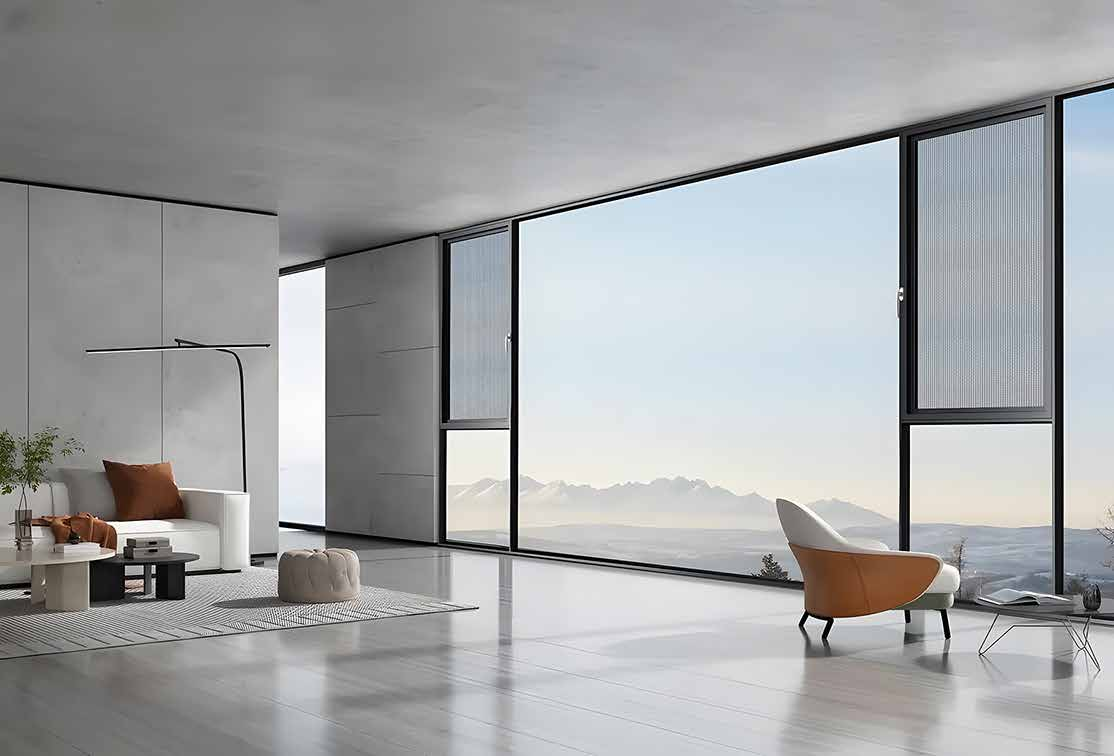

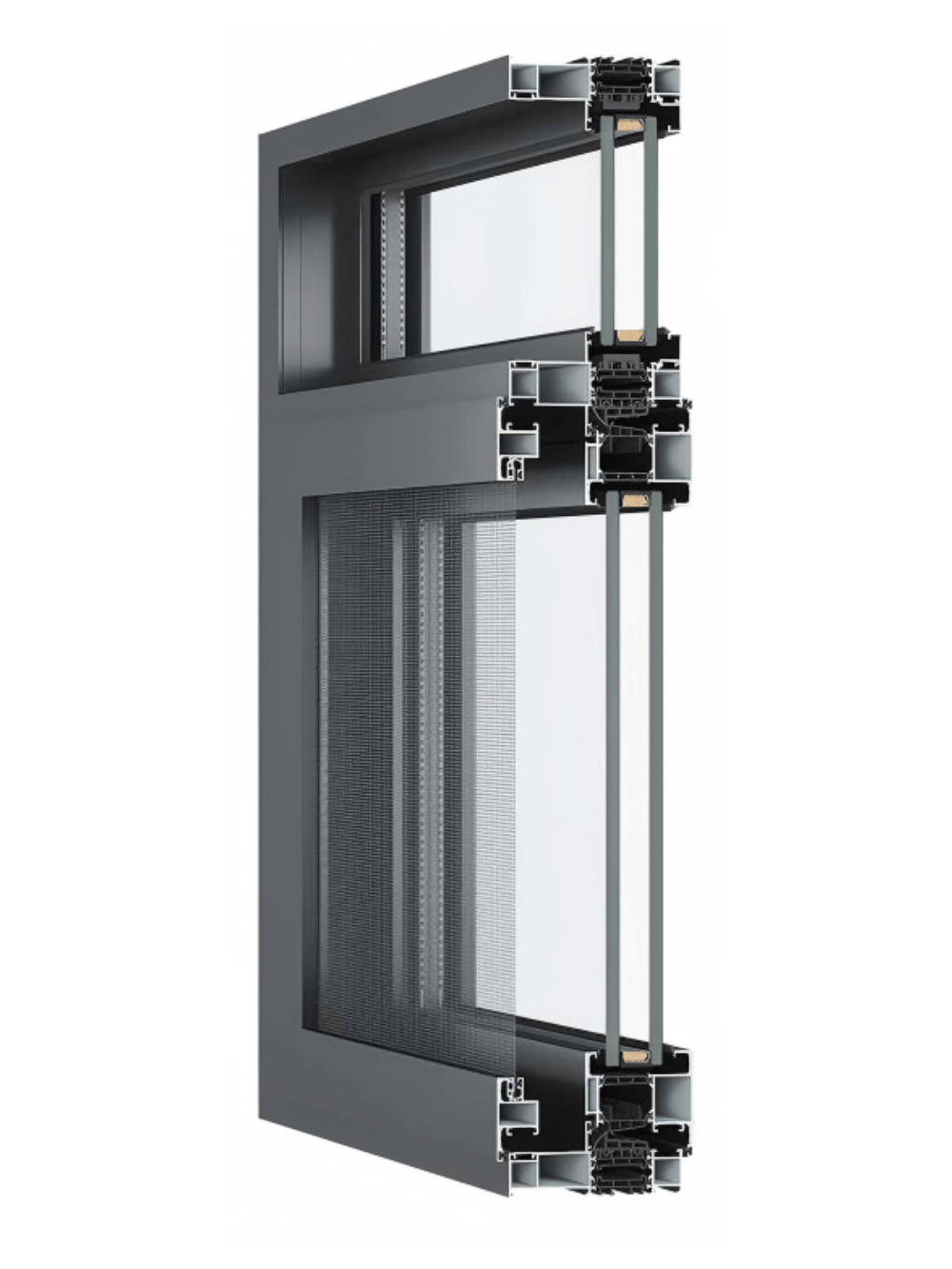

NH MIRA 127 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNAL WINDOW OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 2.0 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 125.5 mm
- Glass: 5 mm + 18A + 5 mm + 18A + 5 mm (Triple Glazing)
- Hardware System: Wehag (Germany)
