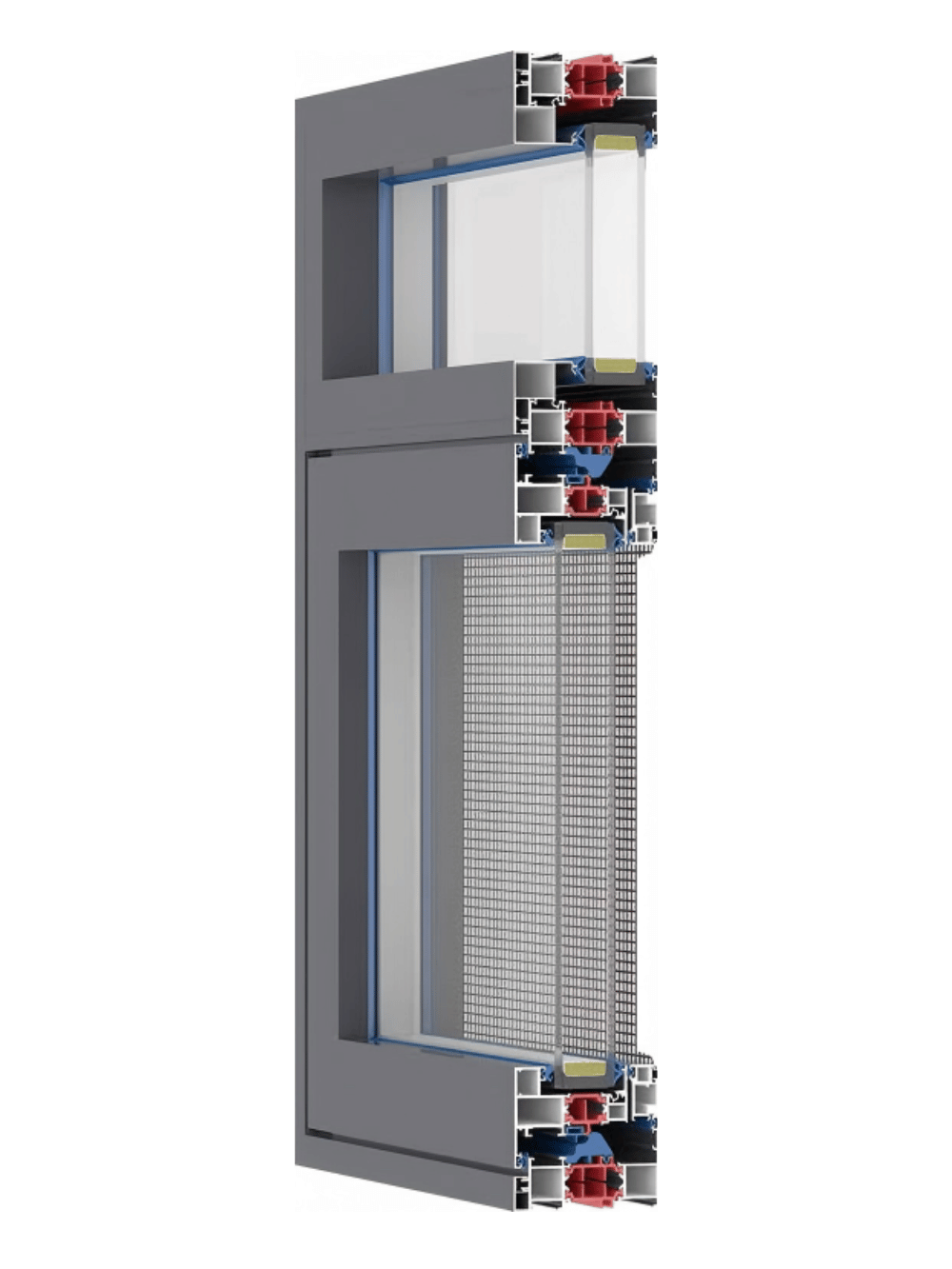

NH VERA 88 THERMAL BREAK CASEMENT WINDOW WITH INTEGRATED SCREEN
PERFORMANCE PARAMETERS
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.32 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 88 mm
- Glass: 5 mm + 27A + 5 mm
- Hardware System: Wehag (Germany)
Related products
NH BREE 83 PULL UP WINDOW
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.33 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.6 mm
- Surface Treatment: Powder Coating
- Wall Occupancy Width: 83 mm
- Glass: 5 mm + 9A + 5 mm
- Hardware System: Caldwell
NH CLARA 105 BRIDGE WITH EXTREMELY NARROW SLIDING WINDOW
Performance Parameters
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Value | 0.44 |
Product Configuration
(Dimension annotation in inches synchronized with mm)- Aluminum Profile: 6063-T5 Aluminum Alloy
- Profile Thickness: 1.8 mm
- Surface Treatment: Powder Coating
- System Width: Double Track: 104 mm / Triple Track: 138 mm
- Glass Specification: 5mm + 20A + 5mm Insulated Glass
- Hardware System: Homey
NH CLARA 110 NON BROKEN BRIDGE SLIDING WINDOW
PERFORMANCE PARAMETERS
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.62 |
PRODUCT CONFIGURATION
- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: Outer frame and sash 1.4mm, lower rail 1.8mm
- Surface Treatment: Powder Coating
- System Width: Two rails: 74mm, Three rails: 110mm
- Glass Specification: 5mm + 9A + 5mm
- Hardware System: Domestic hardware
- Dimension Note: Dimension annotation in inches synchronized with MM
NH MIRA 110 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNA WINDOW OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 1.4 mm
- Surface Treatment: Powder Coating
- System Width: 110 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Hopo
NH MIRA 113 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNAL WINDOW OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 2.0 mm
- Surface Treatment: Powder Coating
- System Width: 111.5 mm
- Glass Specification: 5mm + 27A + 5mm
- Hardware System: Wehag Germany
NH MIRA 86 THERMAL BREAK CASEMENT WINDOW WITH INTEGRATED SCREEN
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 1.6 mm
- Surface Treatment: Powder Coating
- System Width: 86 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Hope, Shenzhen
NH MIRA T8 BROKEN BRIDGE AMERICAN HAND CRANKED WINDOW
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment: Powder Coating
- Profile Width (Wall Occupancy): 107 mm
- Glass: 5 mm + 27A + 5 mm
- Hardware System: King Long, Wehag Gemany
NH VERA E2 BROKEN BRIDGE WITH DOUBLE INTERNAL WINDOWS
PERFORMANCE PARAMETERS
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.32 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 81 mm
- Glass: 5 mm + 20A + 5 mm
- Hardware System: Hopo
