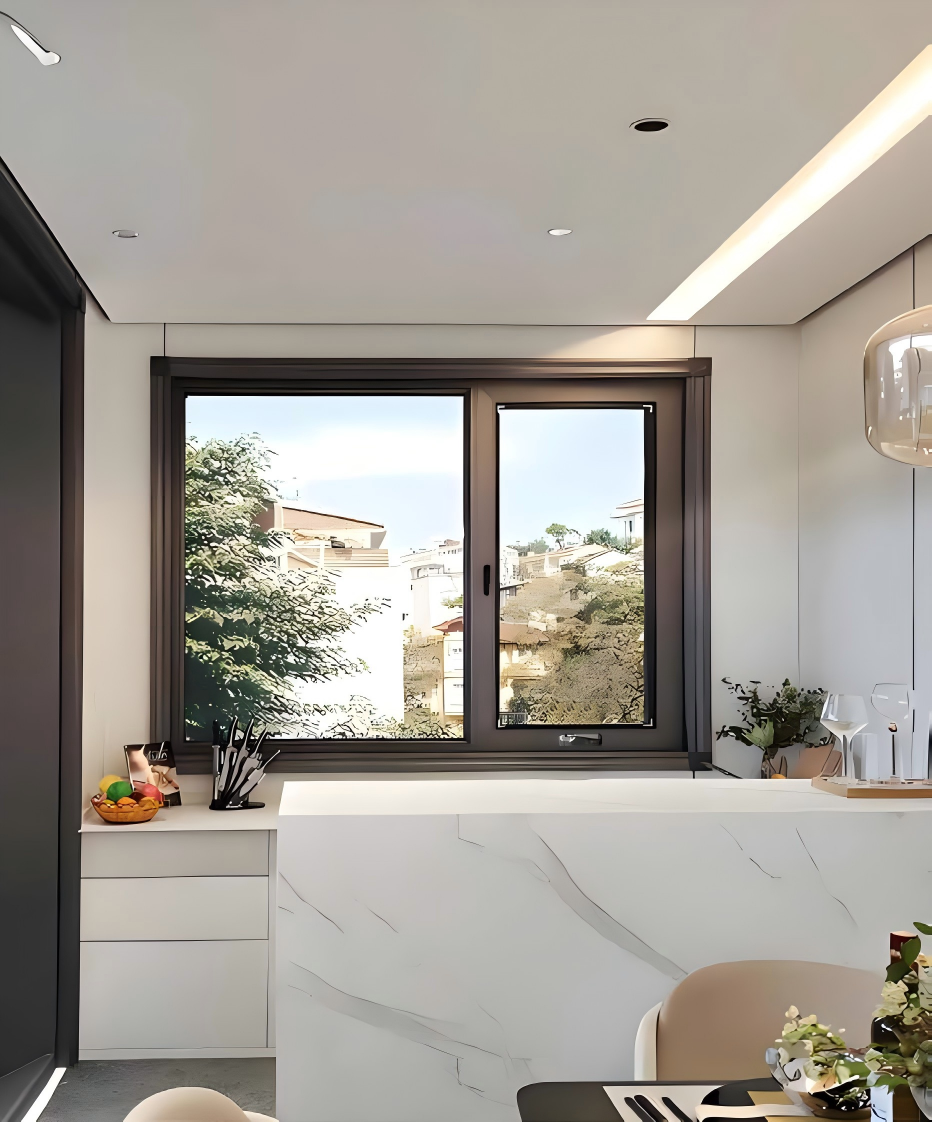

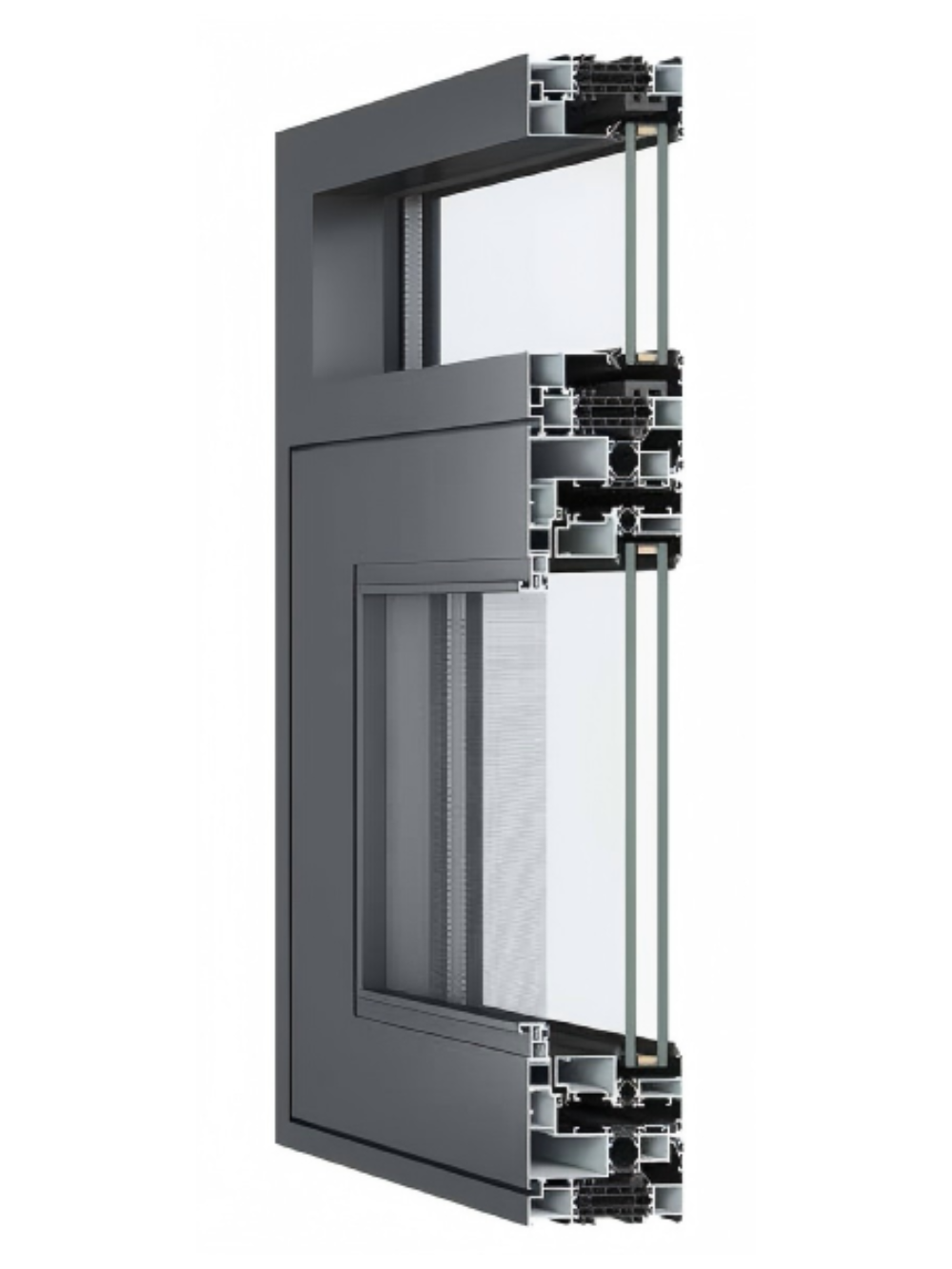

NH MIRA T8 BROKEN BRIDGE AMERICAN HAND CRANKED WINDOW
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.8 mm
- Profile Surface Treatment: Powder Coating
- Profile Width (Wall Occupancy): 107 mm
- Glass: 5 mm + 27A + 5 mm
- Hardware System: King Long, Wehag Gemany
