Lift The Window
Showing all 2 results

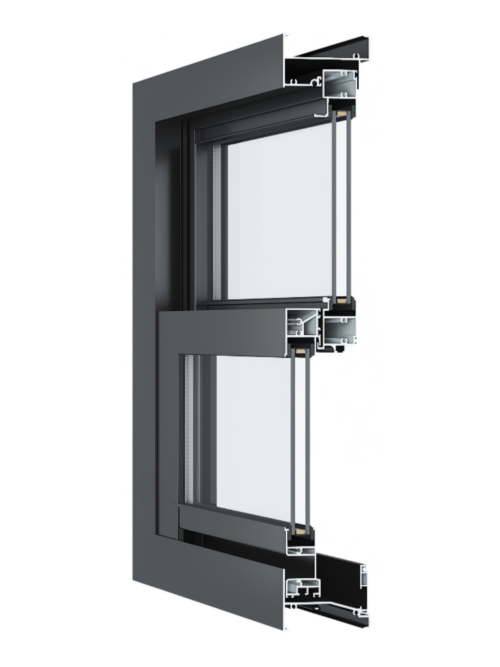

NH BREE 83 PULL UP WINDOW
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.33 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.6 mm
- Surface Treatment: Powder Coating
- Wall Occupancy Width: 83 mm
- Glass: 5 mm + 9A + 5 mm
- Hardware System: Caldwell
NH BREE 83 PULL UP WINDOW
PERFORMANCE PARAMETERS
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.44 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: 1.5 mm
- Surface Treatment: Powder Coating
- Wall Occupancy Width: 83 mm
- Glass: 5 mm + 9A + 5 mm
- Hardware System: Domestic Hardware
