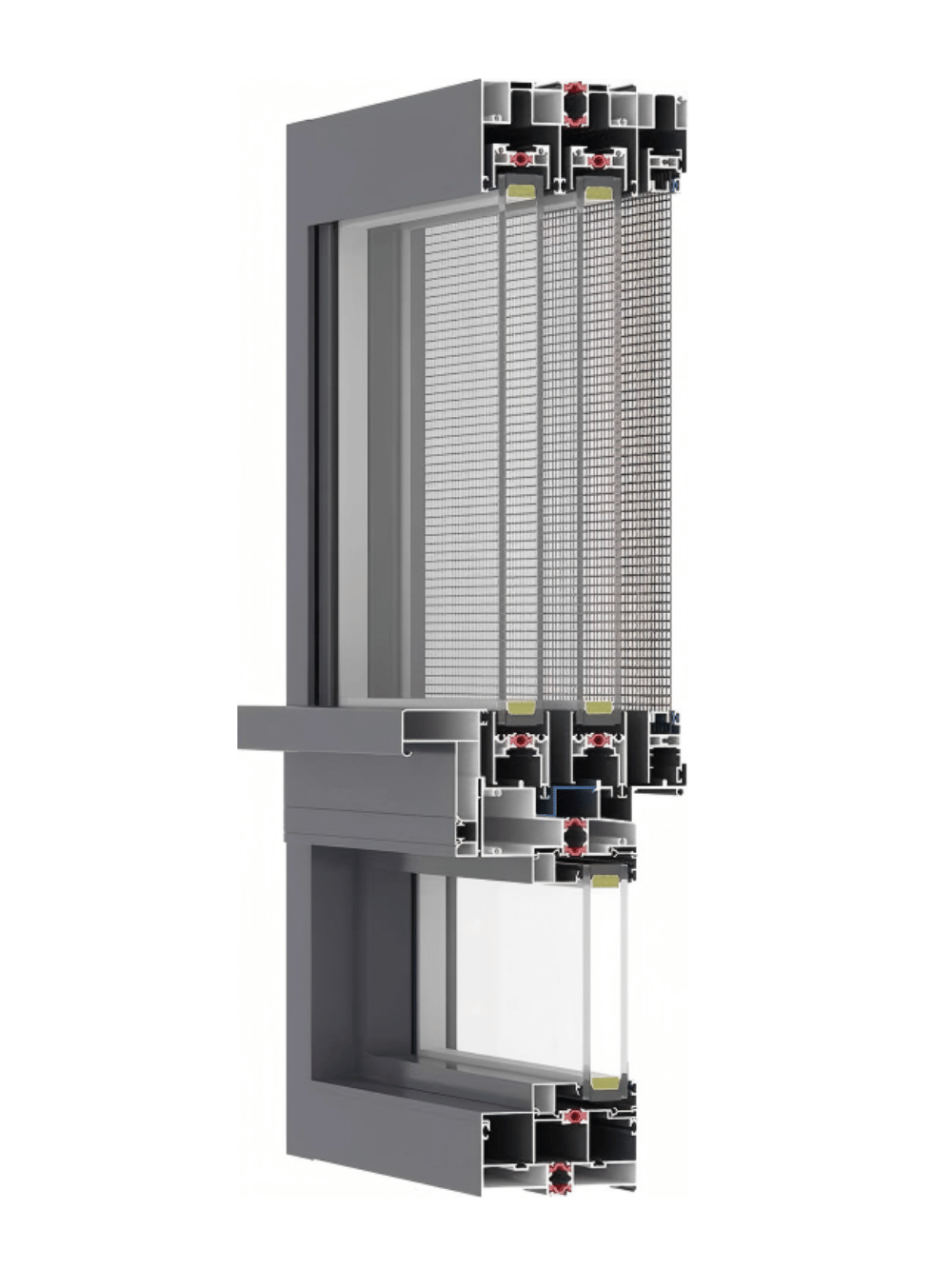

NH CLARA 105 BRIDGE WITH EXTREMELY NARROW SLIDING WINDOW
Performance Parameters
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Value | 0.44 |
Product Configuration
(Dimension annotation in inches synchronized with mm)
- Aluminum Profile: 6063-T5 Aluminum Alloy
- Profile Thickness: 1.8 mm
- Surface Treatment: Powder Coating
- System Width:
Double Track: 104 mm / Triple Track: 138 mm - Glass Specification: 5mm + 20A + 5mm Insulated Glass
- Hardware System: Homey
