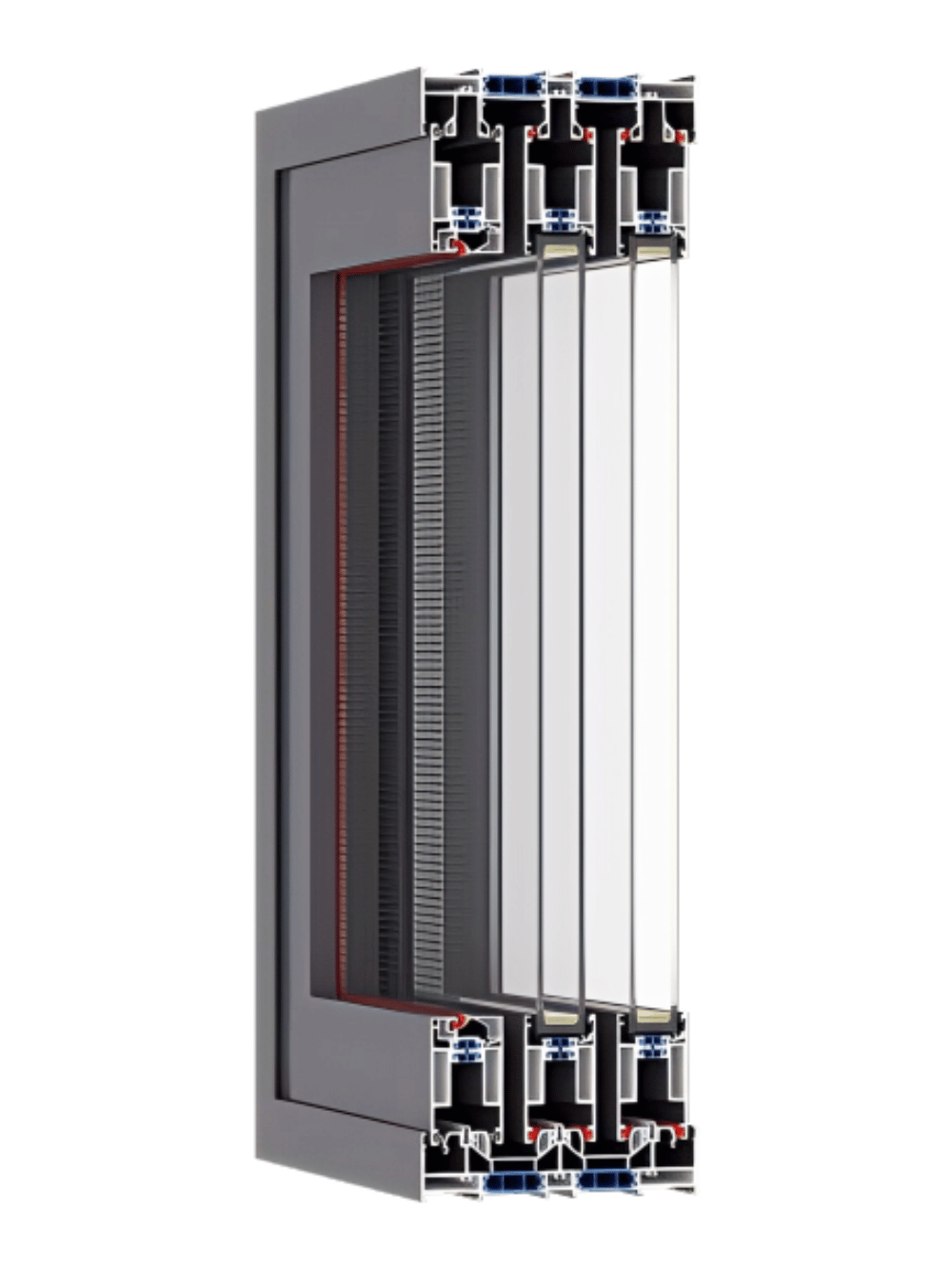

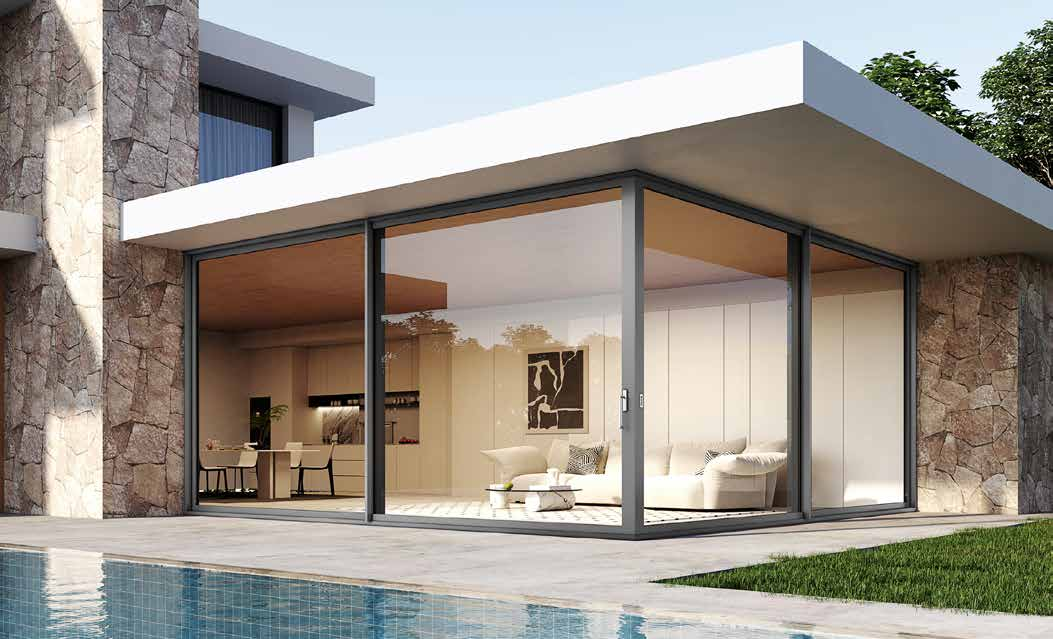

NH ARIA 128 THERMAL BREAK SLIDING DOOR
PERFORMANCE PARAMETERS
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 1.0 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: Frame: 2.2 mm / Sash: 2.2 mm
- Profile Surface Treatment Process: Powder Coating
- System Width: Double Track: 128 mm / Triple Track: 193 mm / Four Track: 258 mm
- Glass: 5 mm + 24A + 5 mm
- Hardware System: Siegenia, Baogao
Related products
NH ARIA 105 NON-THERMAL BREAK SLIDING DOOR
PERFORMANCE PARAMETERS
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.62 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 1.8 mm
- Surface Treatment: Powder Coating
- System Width: Two rails 105mm, Three rails 161mm, Four rails 217mm
- Glass Specification: 5mm + 15A + 5mm
- Hardware System: Custom Hardware
NH ARIA 110 THERMAL BREAK SLIDING DOOR
PERFORMANCE PARAMETERS
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: Frame: 2.0 mm / Sash: 2.0 mm
- Profile Surface Treatment Process: Powder Coating
- System Width: Double Track: 110 mm / Triple Track: 165 mm / Four Track: 220 mm
- Glass: 5 mm + 15A + 5 mm
- Hardware System: Custom Hardware
NH ARIA L6 NON BROKEN BRIDGE HEAVY-DUTY SLIDING DOOR
PERFORMANCE PARAMETERS
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.88 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: Outer frame 1.6mm, 68 panels 3.0mm, 100 panels 2.0mm
- Surface Treatment: Powder Coating
- System Width: Two rails 126.5mm, Three rails 190.5mm
- Glass Specification: 5mm + 18A + 5mm
- Hardware System: Baogao Hardware
NH NOVA 109 BROKEN BRIDGE OPEN DOOR OUTSIDE
Performance Parameters
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
Product Configuration
(Dimension annotation in inches synchronized with mm)- Aluminum Profile Type: 6063-T5 Aluminum Profile
- Profile Thickness: 2.0 mm
- Surface Treatment: Powder Coating
- System Width: 109 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Wehag Germany
NH NOVA 110 BRIDGE CUT WINDOW SCREEN WITH EXTERNAL DOOR OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 1.4 mm
- Surface Treatment: Powder Coating
- System Width: 110 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Domestic hardware
NH NOVA 113 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNAL DOOR OPENING
PERFORMANCE PARAMETERS
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 2.0 mm
- Surface Treatment: Powder Coating
- System Width: 111.5 mm
- Glass Specification: 5mm + 27A + 5mm
- Hardware System: Domestic hardware, Wehag Germany
NH NOVA 88 BROKEN BRIDGE OPEN DOOR
PERFORMANCE PARAMETERS
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.32 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: Frame: 1.8 mm / Sash: 2.2 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 88 mm
- Glass: 5 mm + 27A + 5 mm
- Hardware System: Wehag (Germany)
NH VISTA 70 BROKEN BRIDGE FOLDING DOOR
PERFORMANCE PARAMETERS
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.53 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)- Aluminum Type: 6063-T5 Aluminum profile
- Profile Thickness: 2.0 mm
- Surface Treatment: Powder Coating
- System Width: 66.3 mm
- Glass Specification: 5mm + 18A + 5mm
- Hardware System: Paige Hardware
