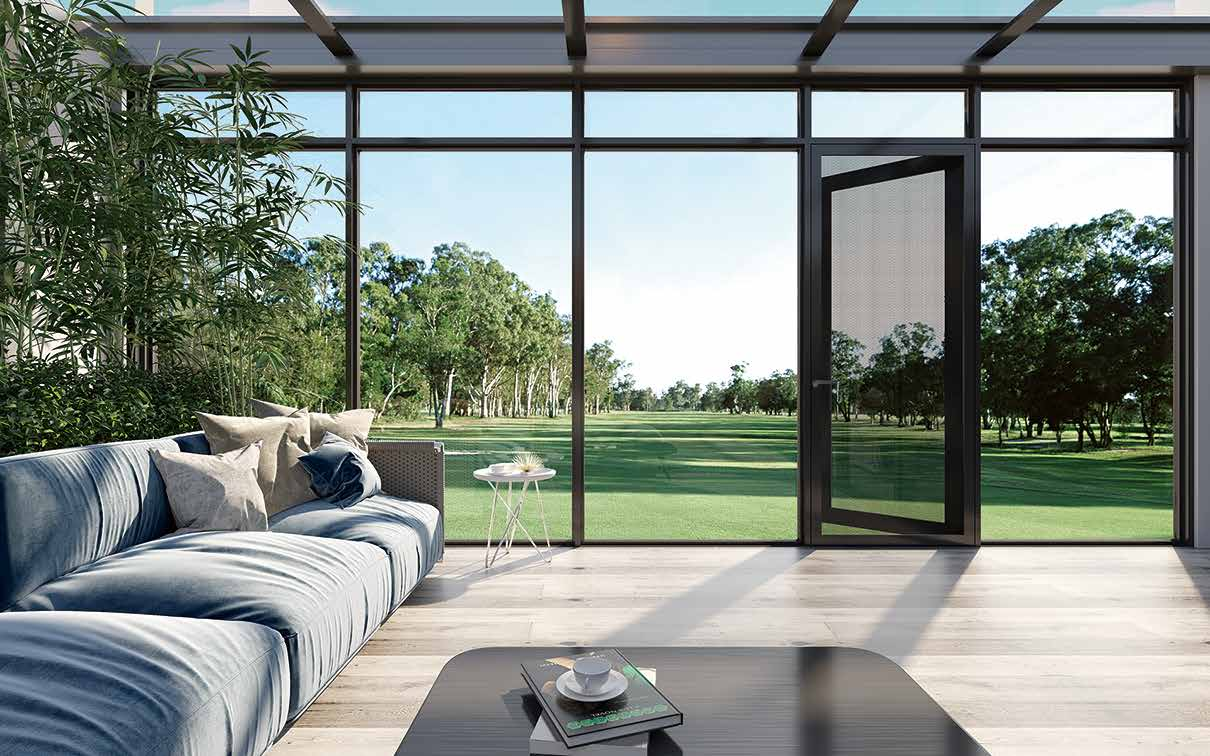

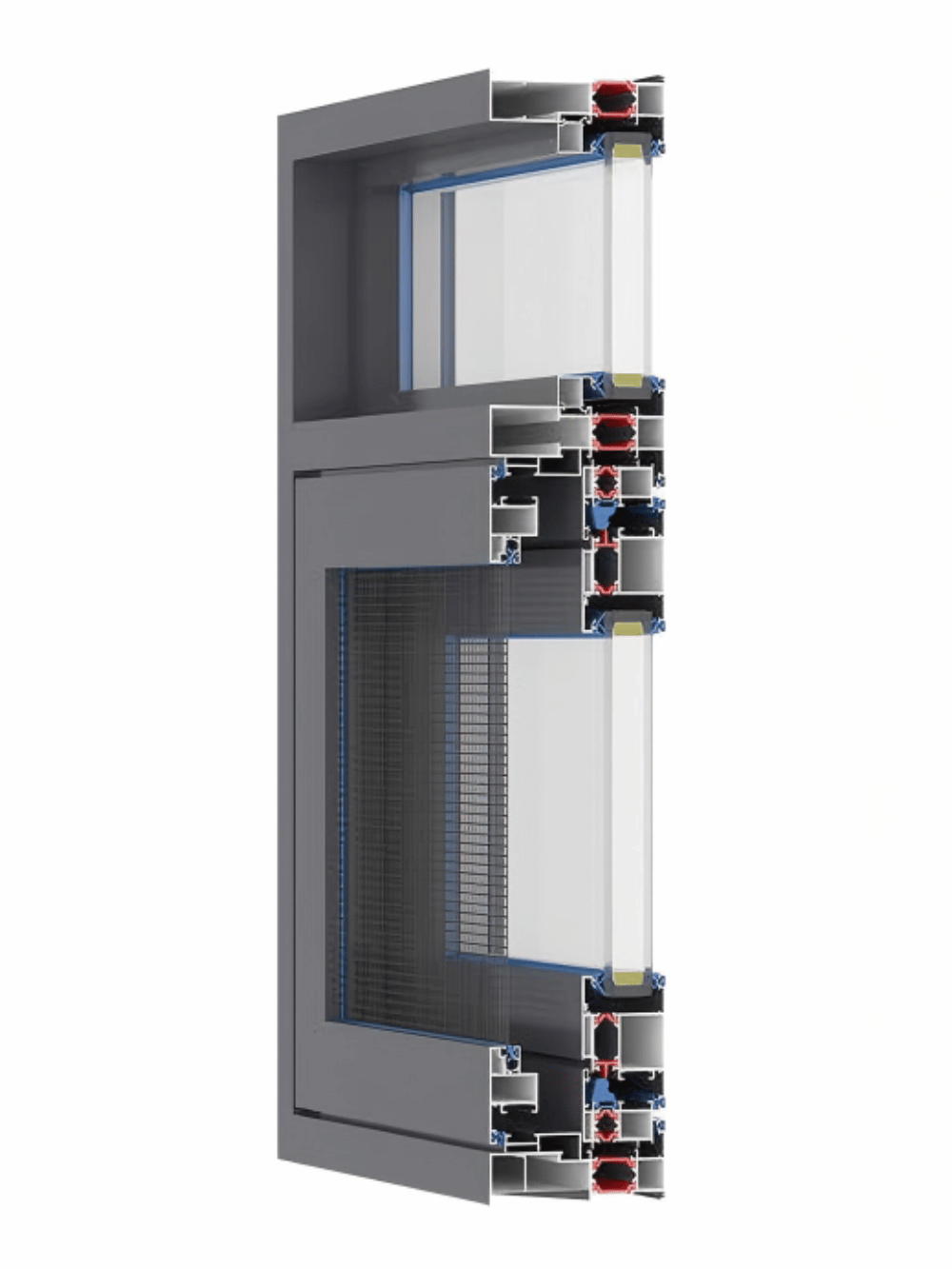

NH NOVA 109 BROKEN BRIDGE OPEN DOOR OUTSIDE
Performance Parameters
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
Product Configuration
(Dimension annotation in inches synchronized with mm)
- Aluminum Profile Type: 6063-T5 Aluminum Profile
- Profile Thickness: 2.0 mm
- Surface Treatment: Powder Coating
- System Width: 109 mm
- Glass Specification: 5mm + 20A + 5mm
- Hardware System: Wehag Germany
