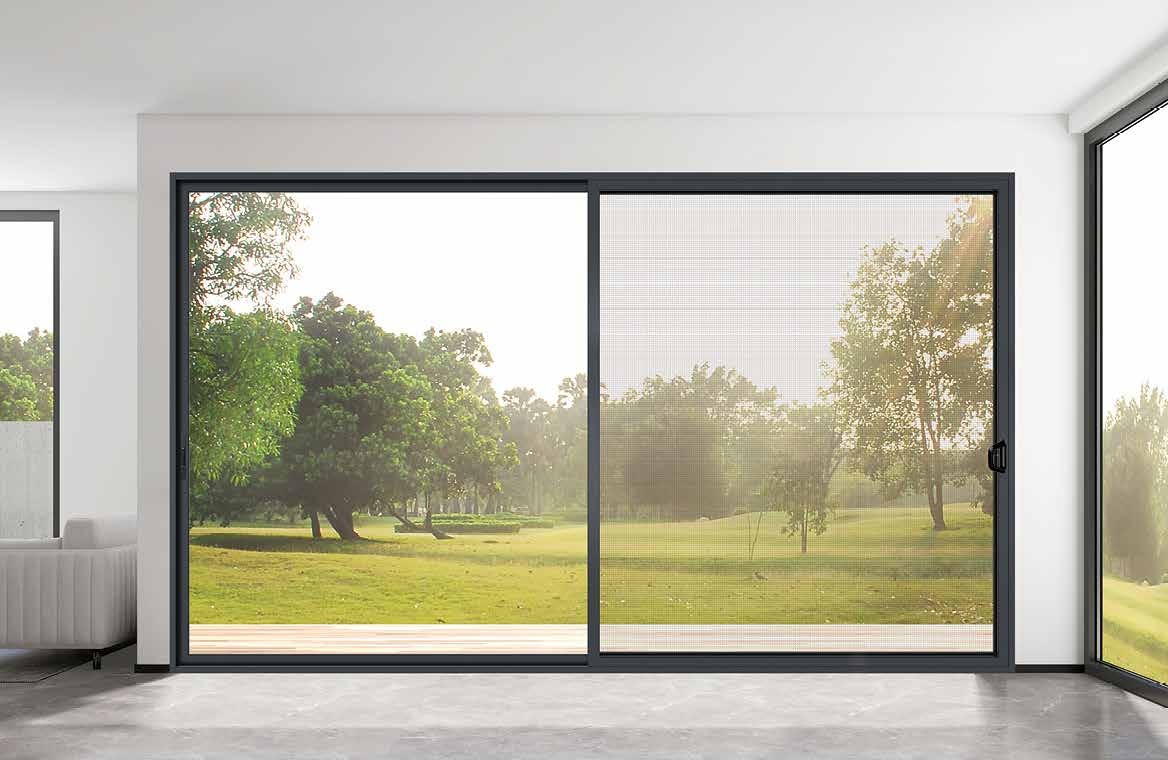

NH ARIA 110 THERMAL BREAK SLIDING DOOR
PERFORMANCE PARAMETERS
| Water Tightness | 450 Pa |
|---|---|
| Air Tightness | 4.5 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 30 dB |
| U-Factor | 0.35 |

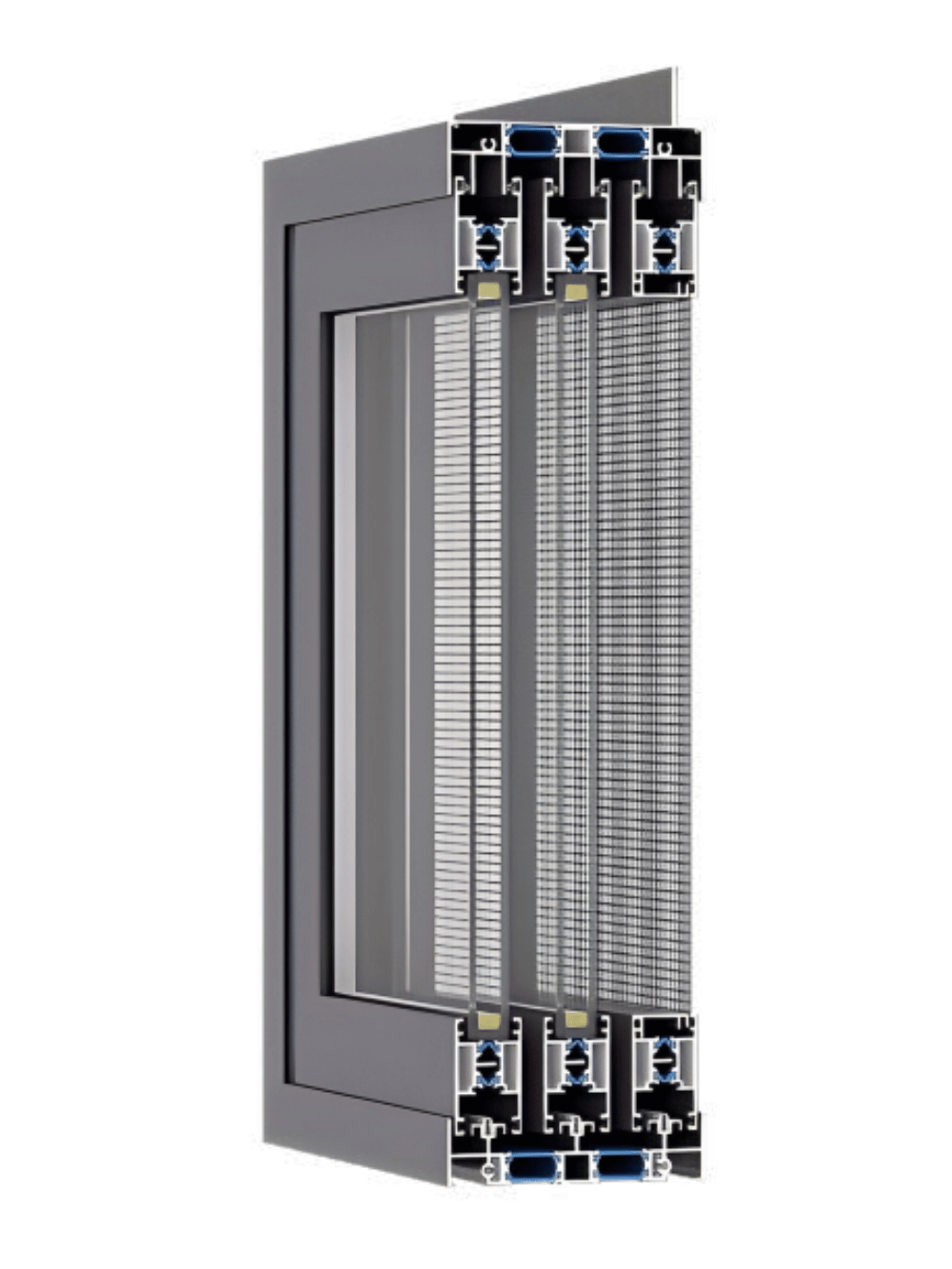

PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: Frame: 2.0 mm / Sash: 2.0 mm
- Profile Surface Treatment Process: Powder Coating
- System Width: Double Track: 110 mm / Triple Track: 165 mm / Four Track: 220 mm
- Glass: 5 mm + 15A + 5 mm
- Hardware System: Custom Hardware
