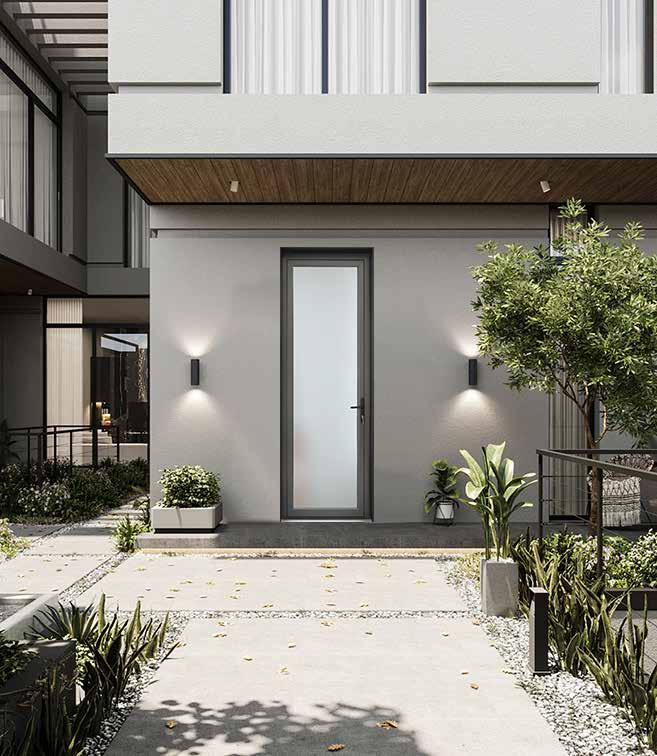

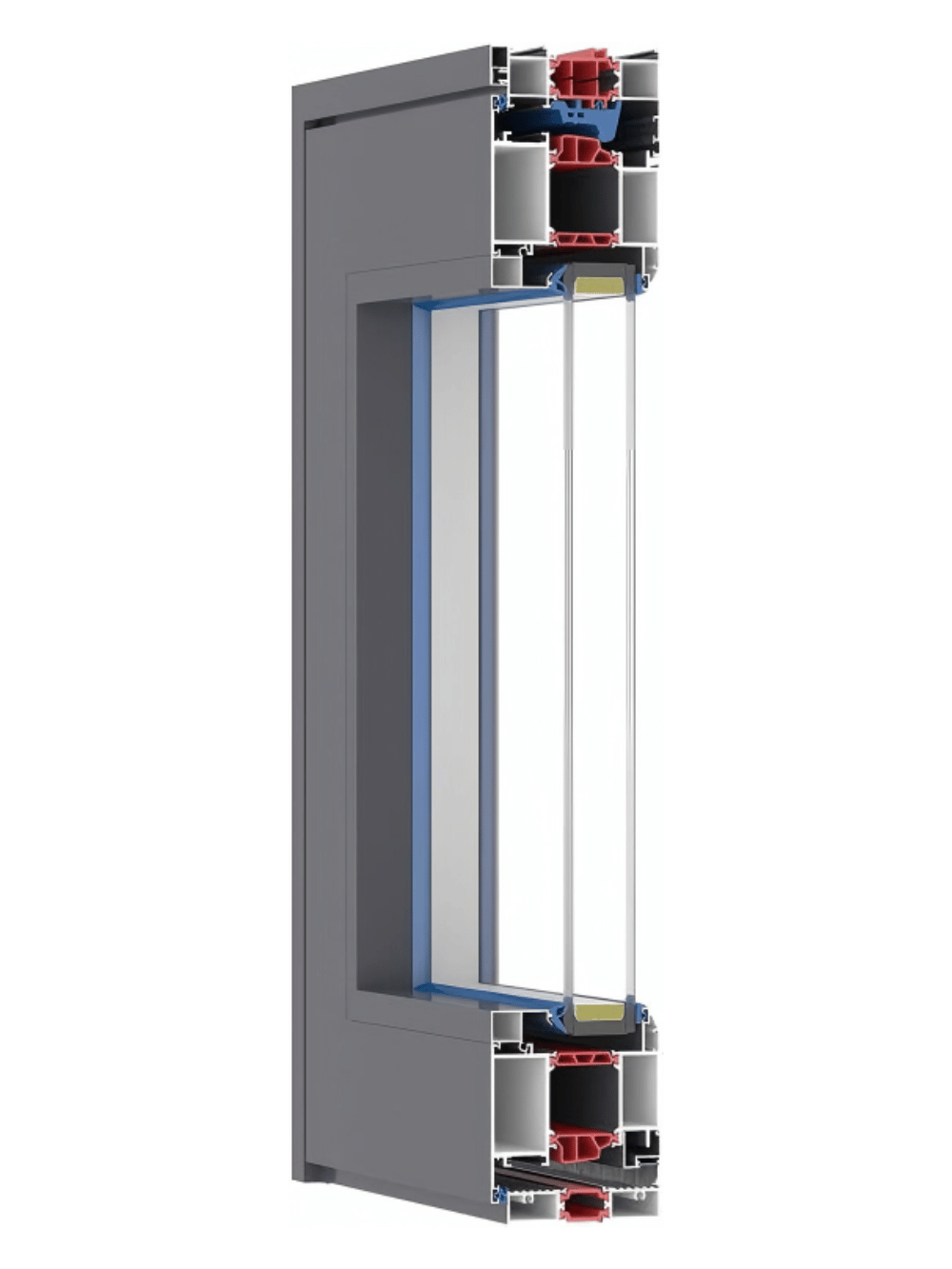

NH NOVA 88 BROKEN BRIDGE OPEN DOOR
PERFORMANCE PARAMETERS

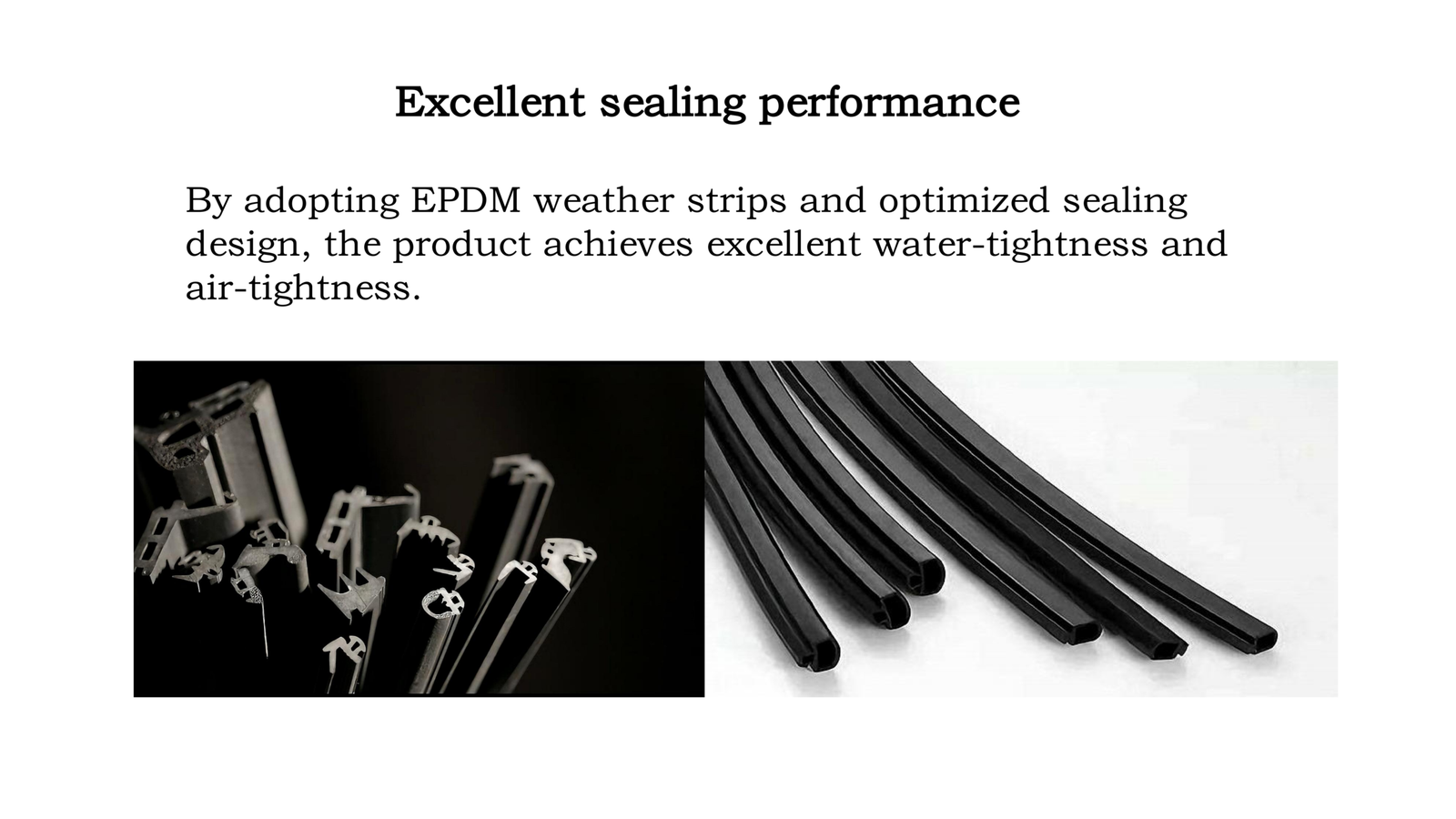

| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.32 |
PRODUCT CONFIGURATION
(Dimension annotation in inches synchronized with mm)
- Aluminum Type: 6063-T5 Aluminum Profile
- Profile Thickness: Frame: 1.8 mm / Sash: 2.2 mm
- Profile Surface Treatment Process: Powder Coating
- Profile Width Occupying Wall: 88 mm

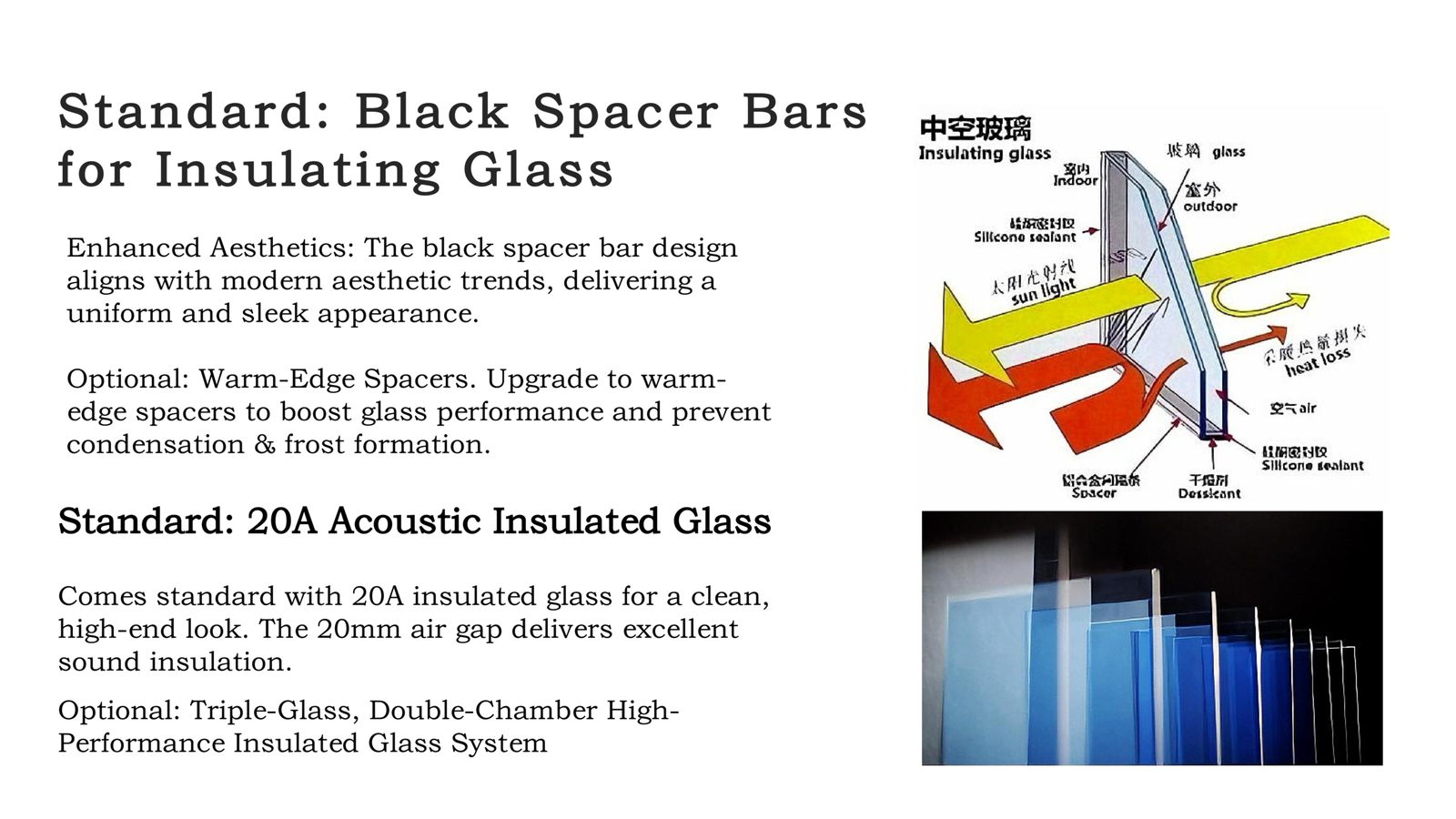

- Glass: 5 mm + 27A + 5 mm
- Hardware System: Wehag (Germany)
