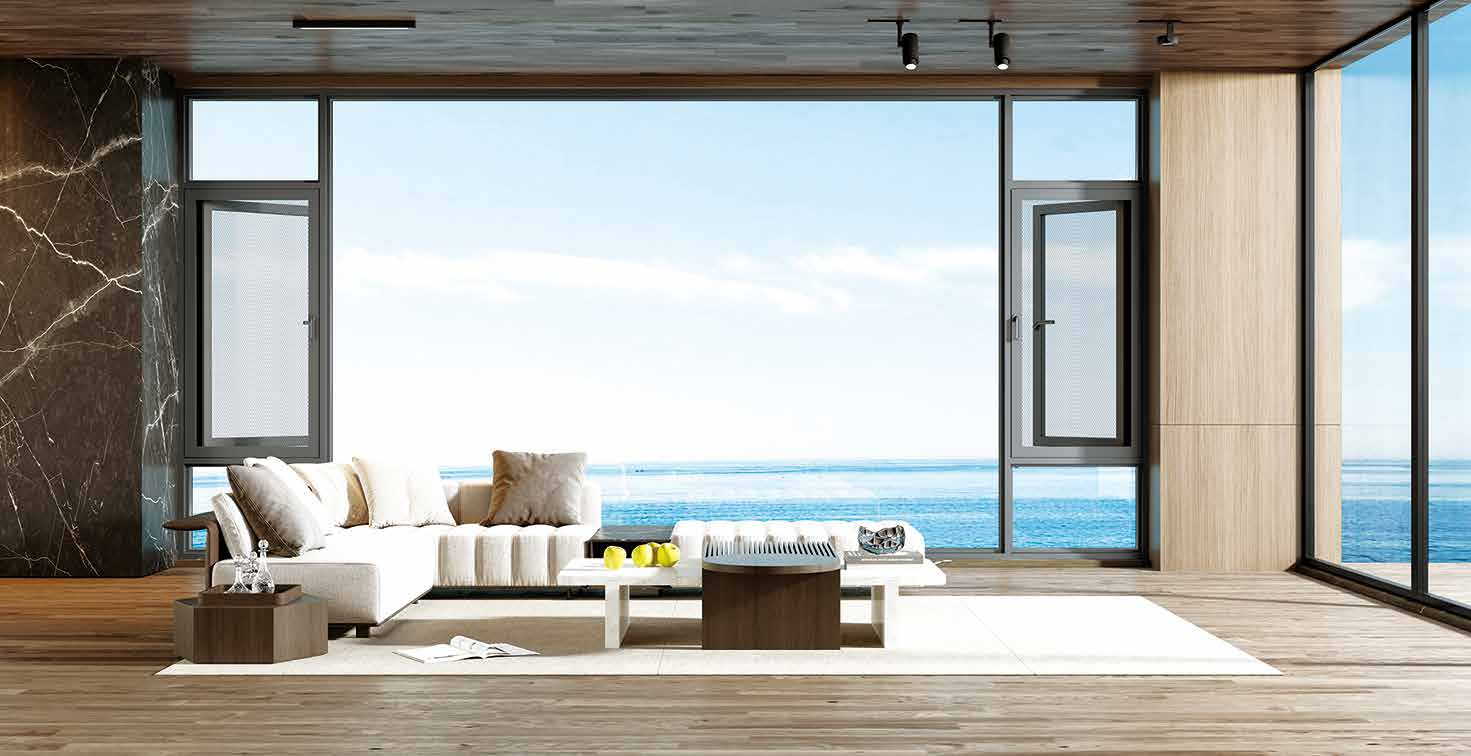

NEOHOSON 109 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNAL WINDOW OPENING
Performance Parameters
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
Product Configuration
| Aluminum Profile | 6063-T5 |
|---|---|
| Profile Thickness | 2.0 mm |
| Surface Treatment | Powder Coating |
| System Width | 109 mm |
| Glass | 5mm + 20A + 5mm (Double Glazed) |
| Hardware System | Wehag (Germany) |
Opening Method
| Opening Type | Refer to the diagram below |
|---|
