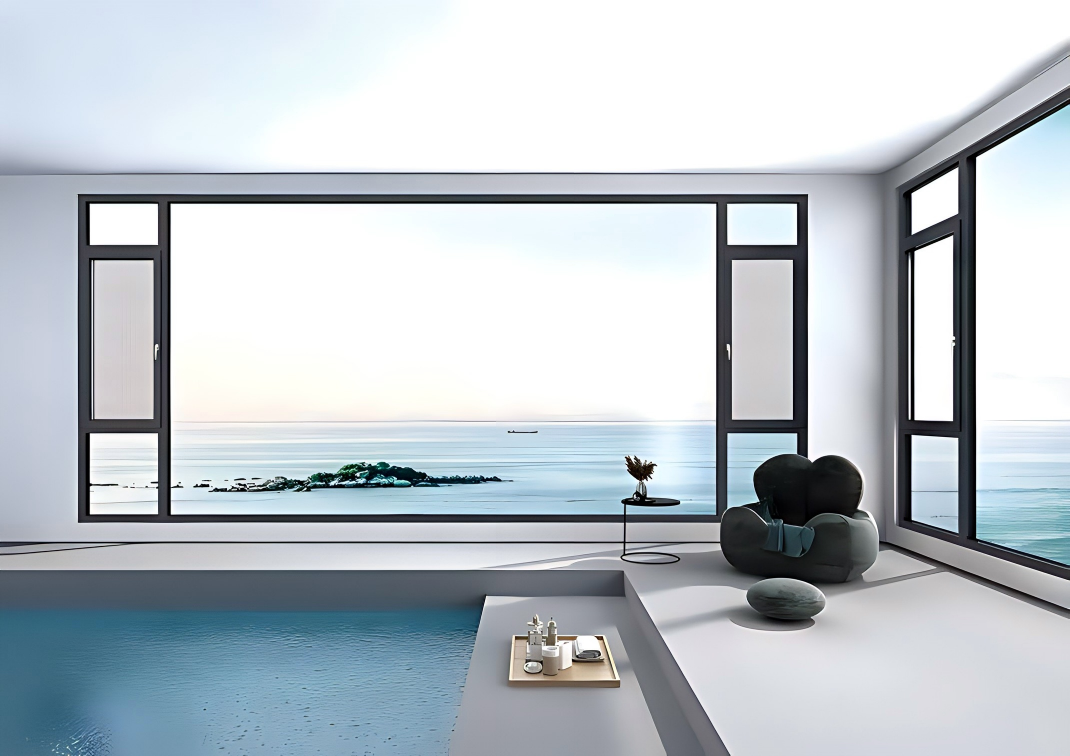

110 BROKEN BRIDGE WINDOW SCREEN WITH EXTERNA WINDOW OPENING
Performance Parameters
| Water Tightness | 700 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.35 |
Product Configuration
- Aluminum Profile: 6063-T5 Aluminum Profile
- Profile Thickness: 1.4 mm
- Surface Treatment: Powder Coating
- System Width: 110 mm
- Glass: 5mm + 20A + 5mm (Double Glazed)
- Hardware System: HOPO
Opening Method & Notes
- Opening Method: Refer to the image above
- Dimension Note: Dimensions are shown in inches with millimeter reference
