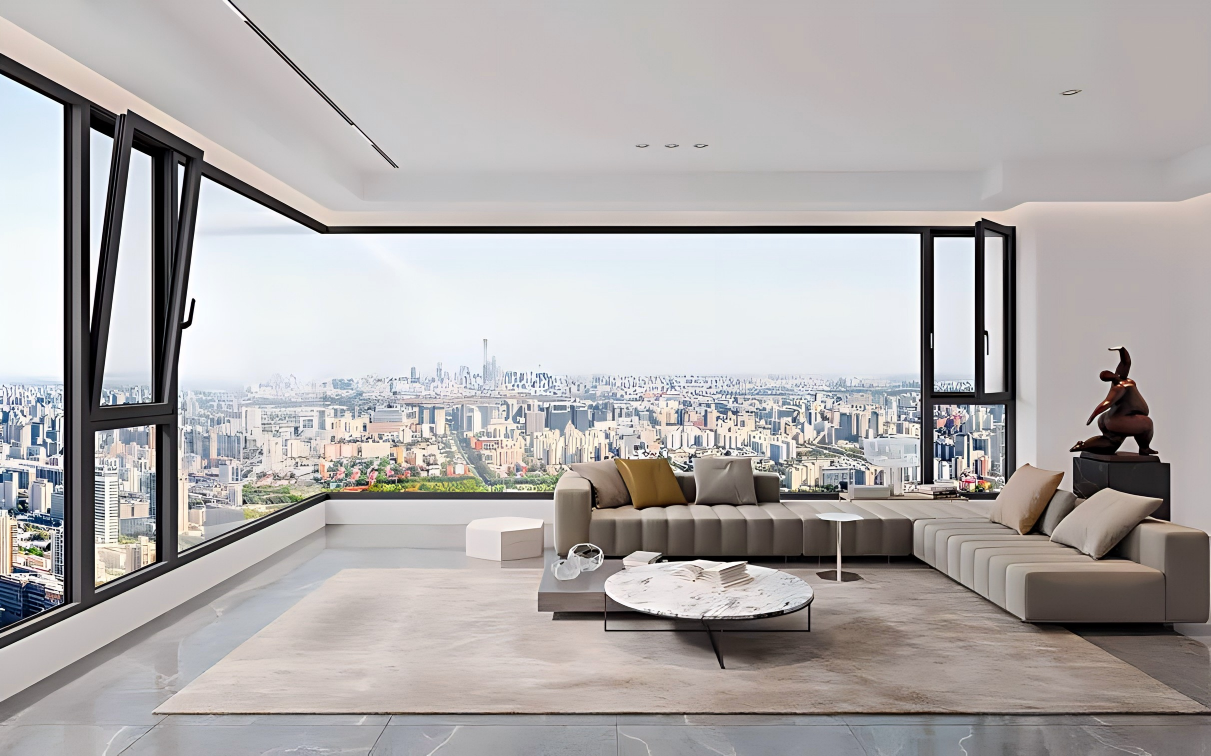

E2 BROKEN BRIDGE WITH DOUBLE INTERNAL WINDOWS
Performance Parameters
| Water Tightness | 550 Pa |
|---|---|
| Air Tightness | 0.3 m³/(m·h) |
| Wind Pressure Resistance | 5.0 kPa |
| Sound Insulation | 35 dB |
| U-Factor | 0.32 |
Product Configuration
Dimension Note: All dimensions are shown in inches with millimeter reference.
- Aluminum Profile: 6063-T5
- Profile Thickness: 1.8 mm
- Surface Treatment: Powder Coating
- Frame Width: 81 mm
- Glass: 5mm + 20A + 5mm (Double Glazed)
- Hardware System: HOPO
