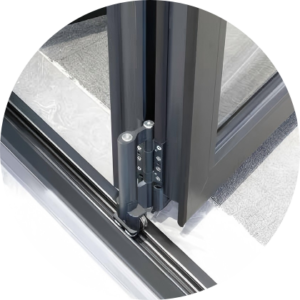

A bi-fold door consists of multiple door panels connected by hinges, enabling large-scale opening through folding movement.
It does not require horizontal sliding or outward swinging. It saves space as it folds and opens effortlessly.

Boasting an expansive view and maximum ventilation, it completely clears the opening when folded. Its aesthetic transparency makes it a premium choice for connecting indoor and outdoor spaces.

NH VISTA 70 BROKEN BRIDGE FOLDING DOOR

PERFORMANCE PARAMETERS

Water Tightness 450 Pa
Air Tightness 4.5 m³/(m·h)
Wind Pressure Resistance 5.0 kPa
Sound Insulation 30 dB
U-Factor 0.53

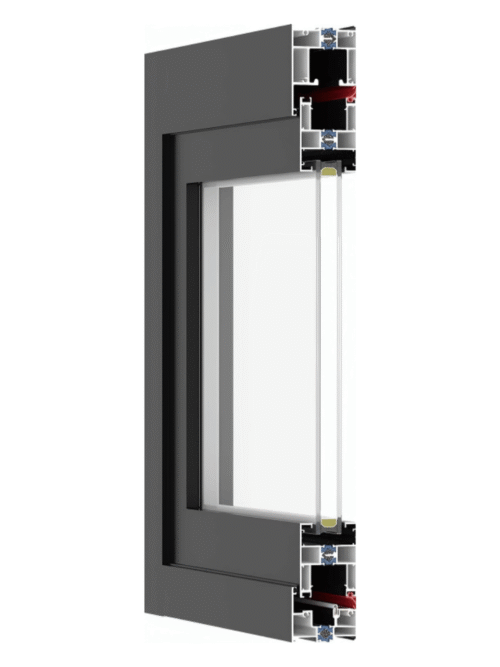

PRODUCT CONFIGURATION

(Dimension annotation in inches synchronized with mm)
  • Aluminum Type: 6063-T5 Aluminum profile
  • Profile Thickness: 2.0 mm
  • Surface Treatment: Powder Coating
  • System Width: 66.3 mm
  • Glass Specification: 5mm + 18A + 5mm
  • Hardware System: Paige Hardware
